MicroScale 500g
Technical Specifications
-
Model Number: BC-668
-
Capacity / Rated Load: 500g
-
Display Type: Digital LED Display
-

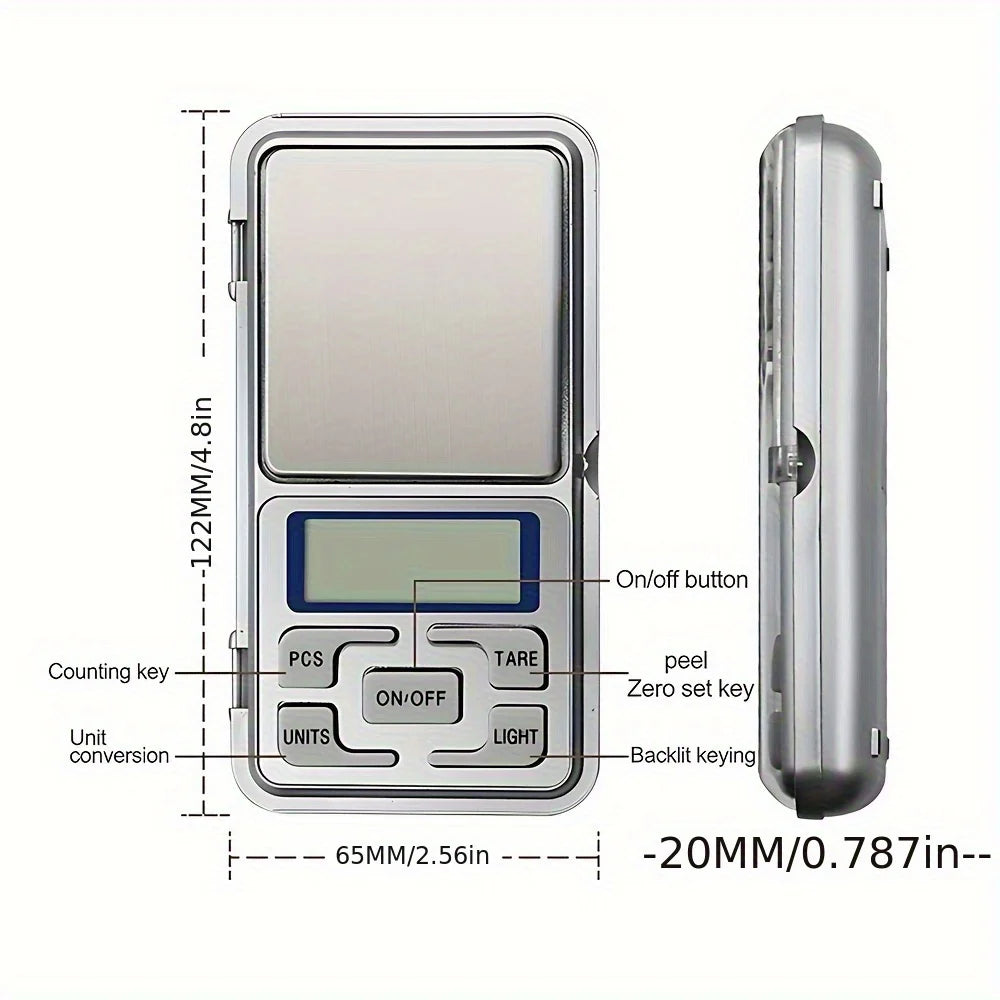

Dimensions: 12 x 6.2 x 2 cm
-
Scale Type: Medical / Personal Precision Scale
-
Certifications: CE, RoHS Certified (Compliant with European safety and environmental standards)
-
Origin: Mainland China
Power & Safety Details
-
Battery: Not Included (Requires separate purchase)
-
Smart Connectivity: Non-smart device
-
Chemical Safety: 100% Safe, contains no high-concern hazardous chemicals
Product Features
-
Backlit LCD Display: Equipped with a large, clear LCD screen with a built-in backlight for effortless reading in any lighting conditions (backlight can be manually turned off).
-
Compact & Functional Design: Pocket-sized portability combined with smart features:
-
"PCS" Function: Perfect for piece-counting small, identical items like coins, beads, or screws.
-

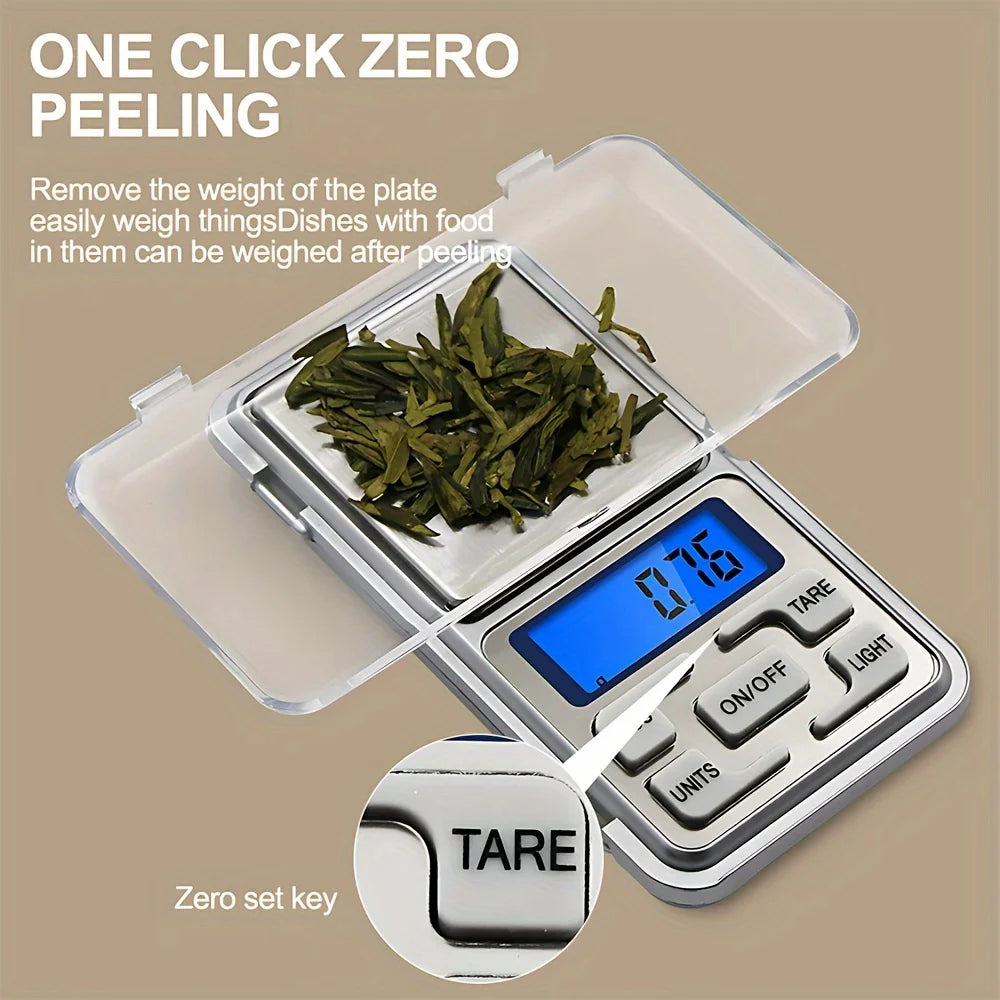

"TARE" Function: Instantly resets the scale to zero to measure the net weight of items inside a container.
-
-

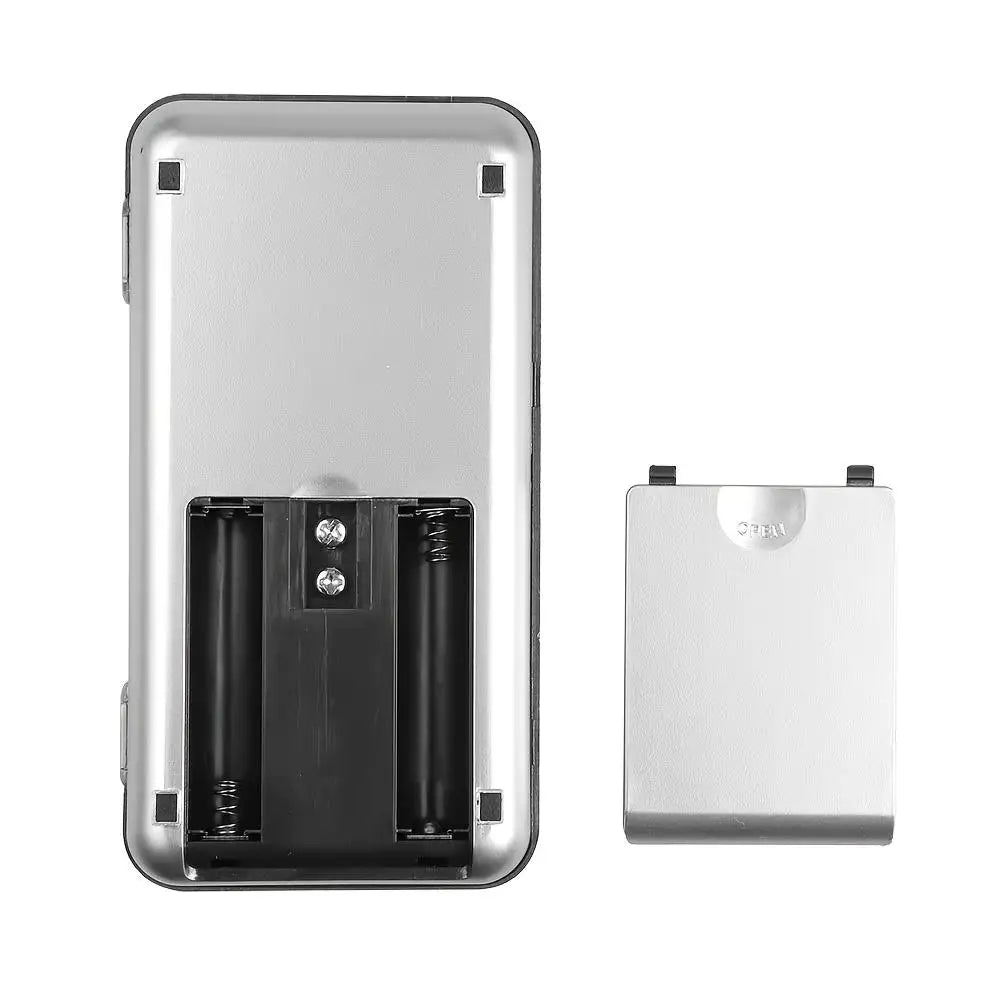

Stability & Convenience: Features 4 anti-slip rubber pads to ensure steady and precise measurements. Powered by 2 × AAA batteries (not included) for easy replacement.
-
Versatile Measurement Units: Supports 5 weight modes to accommodate various weighing needs: g, oz, ozt, dwt, ct.
Step-by-Step Calibration Guide
-
Power On: Turn on the scale.
-
Enter Calibration Mode: Press and hold the "UNITS" button for about 2 seconds until "500.00" appears.
-
Confirm: Release and press "UNITS" once more—"CAL" and "500.00" will flash.
-
Place Weight: Place a standard 500g calibration weight on the platform.
-
Complete: Wait for the screen to display "PASS" and "500.00g" ($\pm$0.05g). If the readout seems inaccurate, simply repeat the process.
Technical Specifications
| Parameter | Specification |
| Maximum Capacity | 500g |
| Minimum Capacity | 0.03g |
| Resolution / Readability | 0.01g |
| Accuracy Tolerance | $\pm$0.05g |
| Core Functions | Tare / Zero, PCS Counting |
⚠️ Important Notes
-
Minimum Threshold: This high-precision scale requires a minimum starting weight of 0.05g to register properly. It is not recommended for items lighter than this threshold.
-
Display Backlight Color: The LCD backlight color (Green or Blue) is dispatched at random based on stock availability. Both variations offer identical brightness, contrast, and performance.
